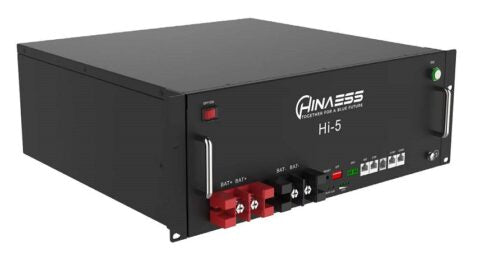

Hina ESS: Battery Lithium Ion Hi-5 5.12KWH 51.2V 100Ah (HinaESS-Hi5)

0Description

General Data
• Model: Hi-5
• Cell Type: LFP
• Rated Power: 5.12KWH
• Rated Capacity: 100Ah
• Rated Voltage: 51.2V
• Charge Voltage: 56.5V
• Charge / Discharge Rating: 1C
• Maximum Charge / Discharge Current: 100A
• Discharge Peak Current: 105A – 15s / 120A – 0.5s
• Parallel Capacity: Up to 32 Units
• Mounting Type: Rack Mount
• Enclosure Protection: IP20
• Communication: CAN / RS485
• Humidity: 5% to 85% (Non Condensing)
• Working Temperature: -20°C to 55°C
• Storage Temperature: -10°C to 35°C
• Certification: CE UN38.3 / IEC62619

warranty - 10 years/ 6000 Cycles @ 90% DoD
