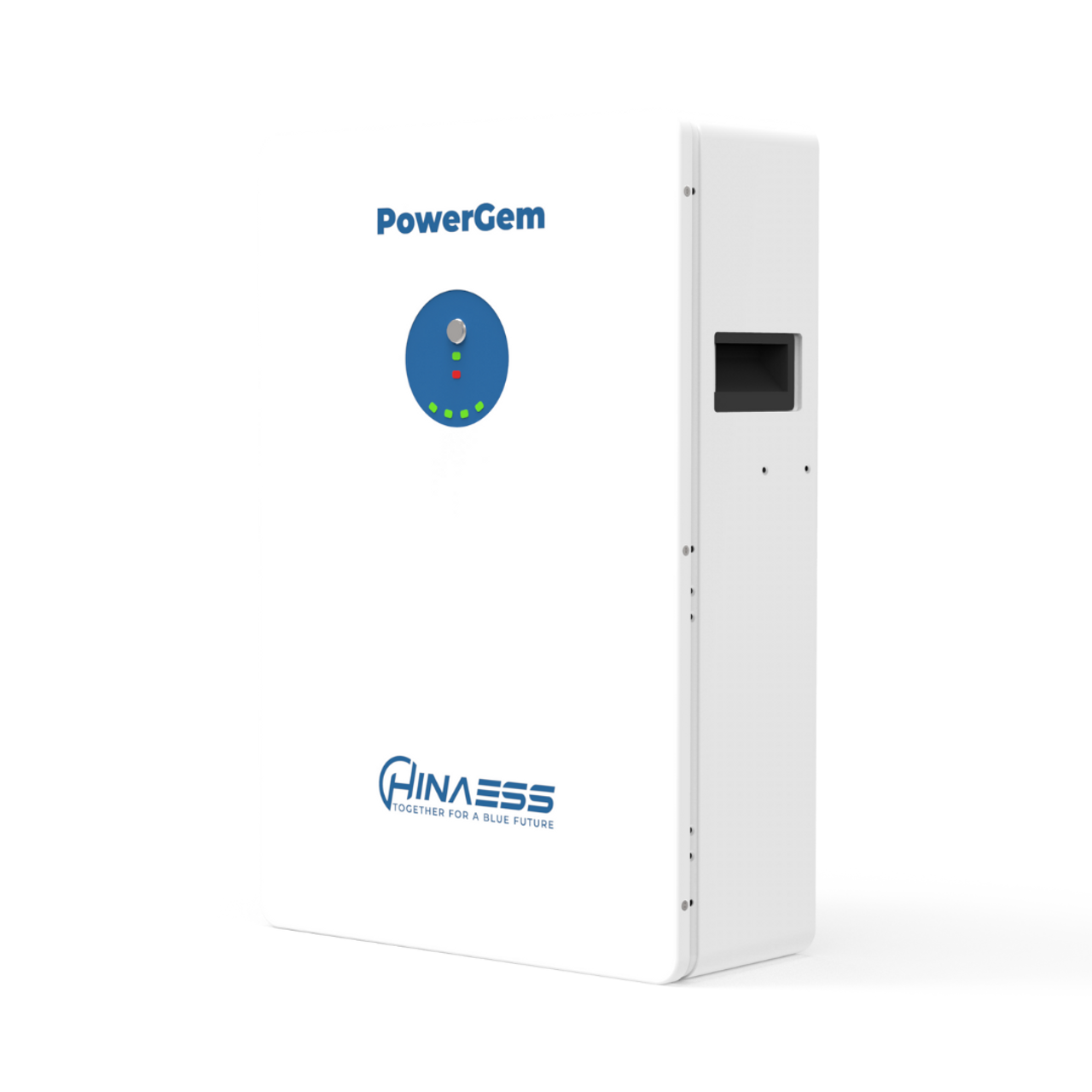

Hina ESS: Battery Lithium Ion PowerGem 5.12KWH 51.2V 100Ah

Description

General Data
• Model: PowerGem
• Cell Type: LFP
• C Rating: 1C
• Rated Power: 5.12KWH
• Rated Capacity: 100AH
• Rated Voltage: 51.2V
• Charge Voltage: 56.5V
• Maximum Charge Current: 100A
• Maximum Discharge Current: 100A
• Discharge Peak Current: 105A @ 15s / 120A @ 0.5s
• Parallel: Maximum 32 Units (No additional hardware required)
• Monitoring: Remote Monitoring & Maintenance
• Wide Inverter Compatibility

Mechanical Data
• IP Level: IP20
• Communication: CAN / RS485
• Humidity: 5% to 85% Non-Condensing
• Work Temperature: -20°C to 55°C
• Storage Temperature: -10°C to 35°C
• Warranty: 10 Year / 6000 Cycles
• Installation: Floor Standing / Wall Mount
