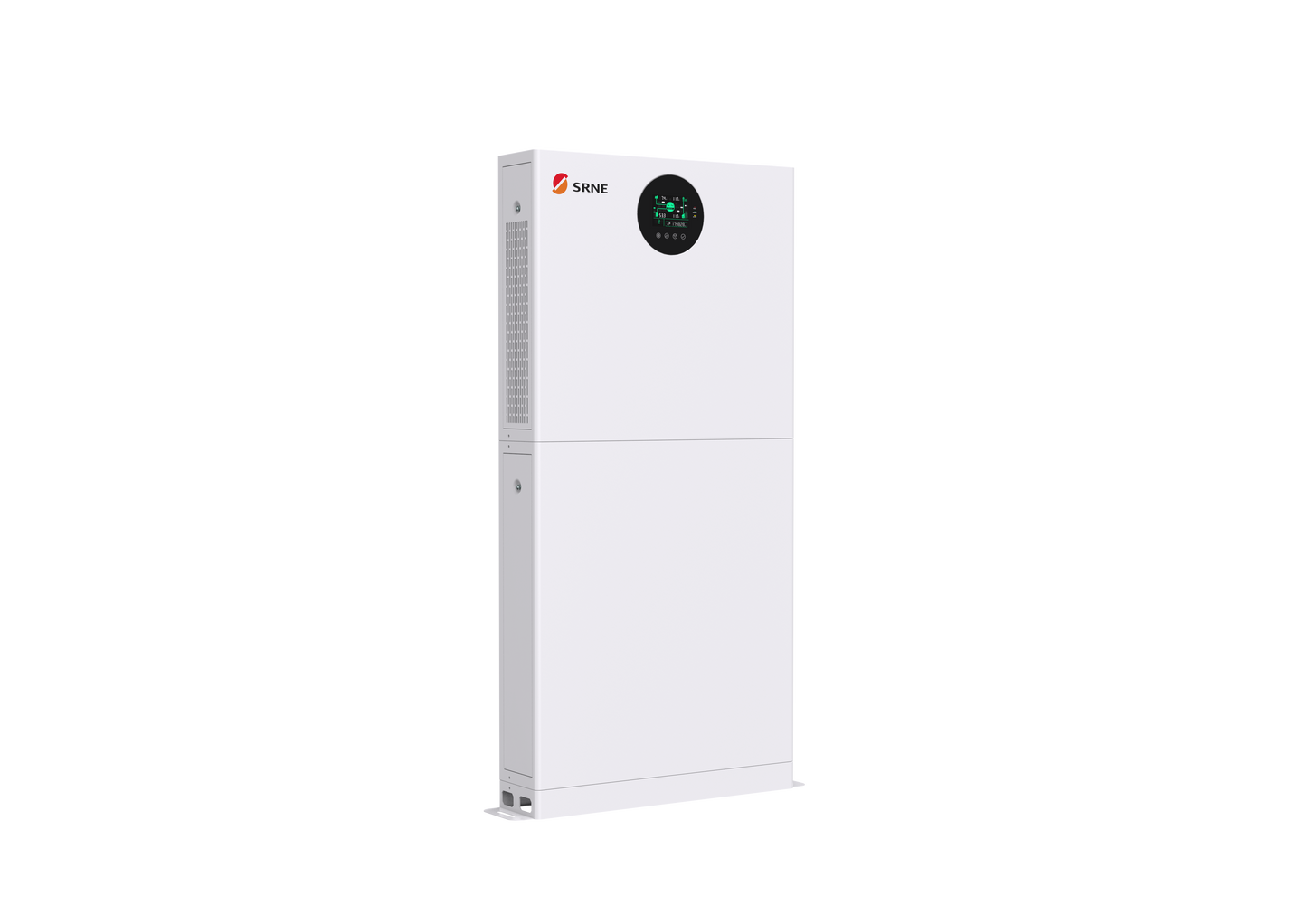

SRNE: Vertical Energy Storage System (All-In-1) (Inverter: 5KW / Battery: 5.12KW)

Srne All In One 5.1Kw Inverter & 5.12Kwh 100Ah 51.2V Lithium Battery

Description:

A 5.1kW inverter and a 5.12kW lifepo4 battery are both included in the SRNE 5.12kW Lifepo4 All-In-One System. It is simple to use and may be put in your home. The SRNE5.1kW can support solar panels with a maximum output of 5500 watts. During a power outage, this device will supply backup power and save your electricity costs. A clean, effective power source is intended to be delivered straight to your home via this SRNE Inverter system.

It is perfect for remote applications that require dependable power because it has a 5.12kW LiFePO4 battery with a capacity of 200AH and a designed life @ 80% DOD (depth of discharge) of 5000 cycles.

Features:

• Integrated inverter design, easy to use and quick to install.
• Scalability: The 4 batteries in parallel can provide up to 20kW.
• The inverter has multiple working modes and can respond flexibly to different power needs.
• Fast and flexible charging: Can be charged with solar panels or Eskom or both at the same time.

Battery Technical Specification:

• Battery model: SR-EOV24-5.0A-E1
• Batteries: 1
• Energy: 5.12kW
• Capacity: 100AH
• Weight: 100kg
• Dimension L× D× H: 1190 x 600 x 184mm
• Type: LiFePO4
• Rated Voltage: 51.2V
• Working Voltage Range: 51.2
• Max. Charging Current: 100A
• Max. Discharging Current: 100A
• DOD: 80%
• Designed Life-span: 5000

PV Charge:

• Solar Charge Type: MPPT
• Maximum Output Power: 5500W
• PV Charging Current Range: 0-80A
• PV Operating Voltage Range: 120-500V
• MPPT Voltage Range: 120-450V

AC Charge:

• Max. Charge Power: 2240W
• AC Charging Current Range: 0-80A
• Rated Input Voltage: 220/230Vac
• Input Voltage Range: 90-280Vac

AC Output:

• Rated Output Power: 5000W
• Maximum Output Current: 30A
• Frequency: 50Hz
• Overload Current: 35A

Battery Inverter Output:

• Rated Output Power: 5000W
• Max Peak Power: 6000VA
• Power Factor: 1
• Rated Output Voltage (Vac): 230Vac
• Frequency: 50Hz
• Auto Switch Period: ＜15ms
• THD: ＜3%

General Data:

• Communication: RS485/CAN/WIFI
• Storage time/temperature: 6 months @25℃;3 months @35℃;1 month @45℃
• Charging temperature range: 0-45℃
• Discharging temperature range: -10-45℃
• Operation Humidity: 5% -85%
• Nominal Operation Altitude: ＜2000m
• Cooling Mode: Force-Air Cooling
• Noise: 60dB(A)
• Ingress Protection Rating: IP20
• Recommended Operation Environment: Indoor
• Installation Method: Vertical
• Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
